Rok produkcji: 2008

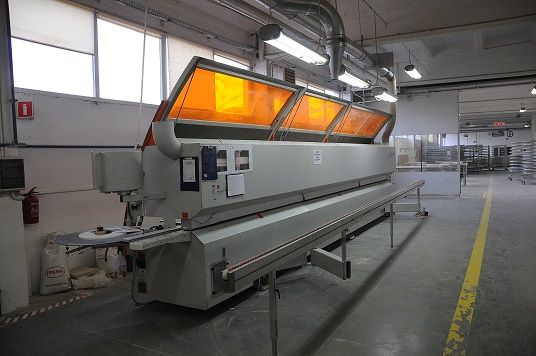

Used Holzher Edgebanders:
German made edgebander with Barbaric Return conveyor and gantry

Overview:
HOLZ-HER control system PPC231
Space saving sliding hoods (pneumatically controlled)
Full servo control of all stations
Round or flat guide for the thick and stable industrial chain
Pressure bridge with motor-driven height adjustment
Two central dust extraction connections
Oil injector for automatic lubrication of chain links, joints and pins
Extendable workpiece support
Specifications:
Panel thickness: 6-60 mm
Edge thickness: 0.4-30 mm
Variable feed speed: 12-25 meter/minute
Basic Modules:
Pre-Milling
Automatic magazine for strips or coils
Glue station
Pressure section
End trim
Flush trim (rough)
Flush trim (finish)
Corner rounding (4 motors)
Scrapping
Finish scraping
Oscillation buffer
Additional Modules (sample):
Profiling (Grooving)
Sanding
Heating

Time Complete- 6 320h
Piece Complete- 2 417 969
Length Complete- 554 543m
