Manufacturer
WEEKE
Model
Profiline BHC 600
Year
2002
Observations

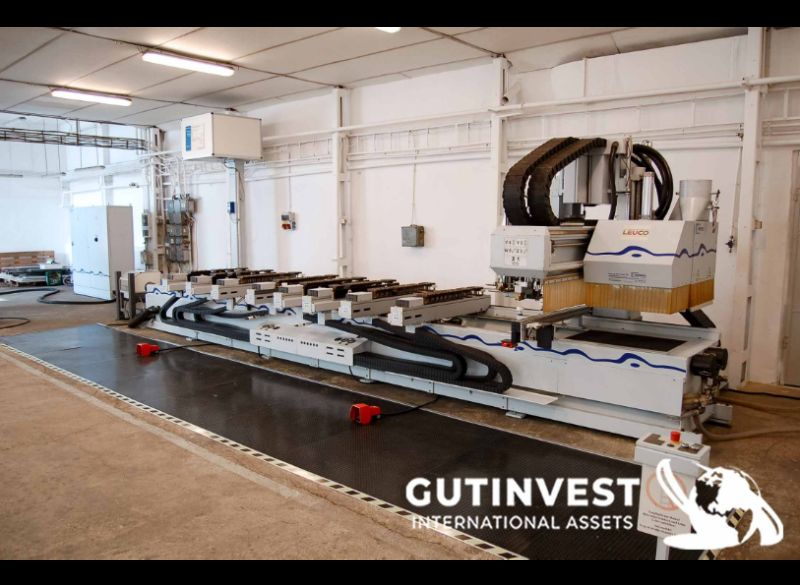

CNC Machining Center
Table dimensions: 5.250x1.000mm,
X,Y,Z axis travels: 6.900x1.635x370mm.
Machine external dimensions: 9.200x2.310x2.450mm,
Machine approx. weight: 7.700Kg.
Vertical chuck: 19 pcs, horizontal chuck (X direction) 4 pcs, horizontal chuck (Y direction) 2 pcs, groove saw.
Main spindle 6 kW, HSK 63, liquid cooling.
8-seat tool magazine. 2 workplaces. 8 beams, motor positioning.
Automatic hinge placement unit.
Safety mat. Wood WOP 5.0.
