WW475M Bandsaw Mill – Efficient and Built on a Solid Frame

Listing content

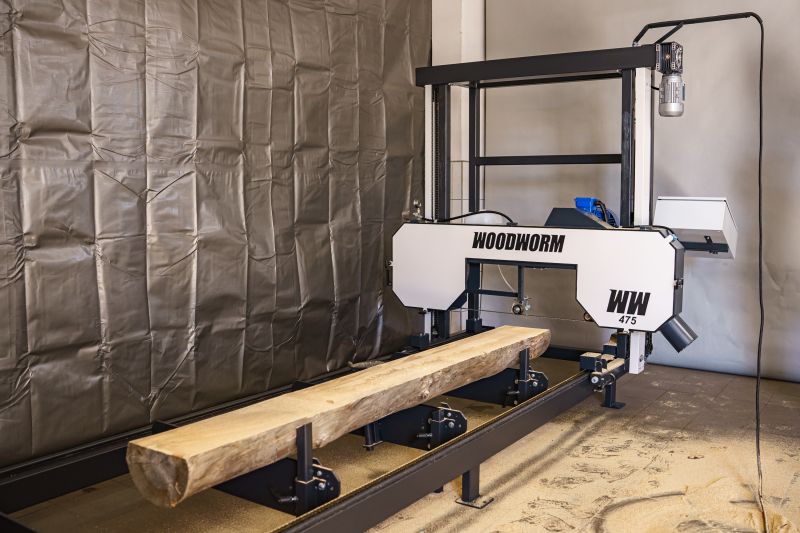

WoodWorm Electric Bandsaw Mill with Quality Equipment

In the WW475M model, we’ve combined excellent ergonomics with a solid and durable design. The machine is built for long-term, trouble-free operation thanks to high-quality components. The WW475M is a modern bandsaw mill designed to work reliably for many years. Thanks to the well-supported wheels and roller, we achieve rigidity and eliminate blade vibration. Reinforced frame thickness is included as standard.

Presentation on YouTube:
Technical Specifications:

Main motor power: 7.5 kW

Guide wheels 475 mm – Supported on both sides to prevent blade vibration and ensure even force distribution

Manual roller – Supported from above to increase cutting stability

Vertical head feed (up/down) – Electric

Horizontal head feed – Electric with inverter (adjustable speed)

Start-up via star–delta automatic switch

Hydraulic blade tensioning (with pressure gauge and additional valve)

“Quick Return” head function

PK multi-groove belt

Electronics based on LG/LS components

Adjustable control panel

Vertical and horizontal limit switches

10-meter power cable included

Frame:

Bed made from 120x80x5 mm reinforced profile

Track length: 6000 mm

Width: 1200 mm, spacing between crossbars: 1004 mm

5 angled log supports (adjustable positions)

2 log clamps (freely positionable)

Height-adjustable legs

Cutting Dimensions:

Max log diameter: 740 mm (distance between guide rollers: 760 mm)

Max processed log diameter (with turning): 1000 mm

Standard log length: 4800 mm

Clearance between saw head frame and blade: 280 mm

Saw Blade:

Blade width: 32–35 mm

Blade length: 4001 mm (standard)

Optional Equipment:

Electronic thickness gauge ISP (various models available)

Extensions for processing longer logs

Support roller with electric adjustment

Mobile version

Debarker

Output tables and ramps

Blade sharpener and setter

The machine is built in accordance with CE Safety Standards and with care for sensitive components.
It includes full technical support and warranty
